"JOYTEC" BBQ Roaster

Joytec Barbecue Roaster
Our smokeless barbecue roasters are developed for Yakiniku restaurants. Know-how of
various fields in which to operate a Yakiniku business is required. The Joytec Barbecue
Roaster boasts of excellent cooking of delicious meats, ease of operation, safety, energy
conservation, and suitability for newly established restaurants. The renewal of
equipment licensing is fast and economical. Many barbecue dining tables and
equipment are prepared.

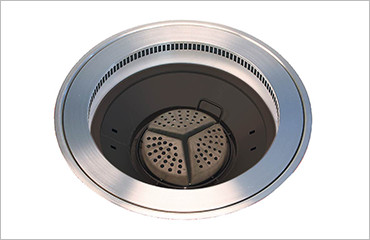

DUCT TYPE SMOKELESS ROASTER

JX-M

GAS METAL HEATING PLATE TYPE

JX-M

Specifications
Pilot Light Ignition
Three Thermal Power Steps High - Medium - Low
Water Tank Capacity 1,500cc (Max: 1,900cc)
Required Exhaust Air 280m3/h
Required Fresh Air Supply 280m3/h
Required Resistance Air Pressure 160Pa
Cooling Load 3.81kW
Gas Consumption City Gas 3.49kW (3,000kca l/h)
L.P.Gas 3.49kW (0.25kg/h)
Electrical 220V, Single Phase, 50/60Hz. 8W

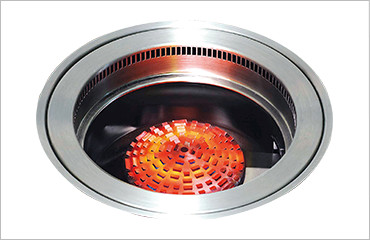

JX-C

CHARCOAL TYPE (WITH AN IGNITING GAS BURNER)

JX-C

Specifications
Pilot Light Ignition
Three Thermal Power Steps High - Medium - Low
Water Tank Capacity 1,500cc (Max: 1,900cc)
Required Exhaust Air 300m3/h
Required Fresh Air Supply 300m3/h
Required Resistance Air Pressure 180Pa
Cooling Load 4.12kW
Gas Consumption City Gas 3.84kW (3,300kcal/h)
L.P.Gas 3.84kW (0.27kg/h)
Electrical 220V, Single Phase, 50/60Hz. 16W

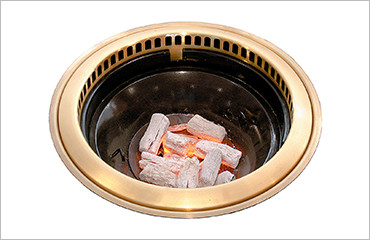

JX-S

CERAMIC-MADE CHARCOAL TYPE

JX-S

Specifications
Pilot Light Ignition
Three Thermal Power Steps High - Medium - Low
Water Tank Capacity 1,500cc (Max: 1,900cc)
Required Exhaust Air 280m3/h
Required Fresh Air Supply 280m3/h
Required Resistance Air Pressure 160Pa
Cooling Load 3.81kW
Gas Consumption City Gas 3.49kW (3,000kcal/h)
L.P.Gas 3.49kW (0.25kg/h)
Electrical 220V, Single Phase, 50/60Hz. 8W

CHU

ENAMEL-COATING CHARCOAL POT TYPE

CHU

Specifications
Adjustment for charcoal blowing fan can be made at no stage.
Required Exhaust Air 360m3/h
Required Fresh Air Supply 360m3/h
Required Resistance Air Pressure 160Pa
Cooling Load 4.19kW
Electrical 220V, Single Phase, 50/60Hz. 8W

NON DUCT TYPE SMOKELESS ROASTER

NJG-M

Gas Metal Heating Plate Type

NJG-M

Specifications
Pilot Light Ignition
Three Thermal Power Steps High - Medium - Low
Water Tank Capacity 2,800cc
Required Exhaust Air 280m3/h
Required Fresh Air Supply 280m3/h
Cooling Load 5.73kW
Gas Consumption City Gas 3.25kW (2,800kcal/h)
L.P.Gas 3.25kW (0.23kg/h)
Electrical 220V, Single Phase, 50/60Hz. 8W

NJG-C

Real Charcoal Type

NJG-C

Specifications
Pilot Light Ignition
Three Thermal Power Steps High - Medium - Low
Water Tank Capacity 2,500cc
Required Exhaust Air 300m3/h
Required Fresh Air Supply 300m3/h
Cooling Load 6.63kW
Gas Consumption City Gas 3.95kW (3,400kcal/h)
L.P.Gas 3.95kW (0.28kg/h)
Electrical 220V, Single Phase, 50/60Hz. 8W

OTHER RELATED PRODUCTS

To use Joytec' s non-smoke roasters for less smoke and effective operation, other related
products are prepared to offer as optional items.

CEILING HOOD

CEILING HOOD

The aesthetic ceiling exhausts hood siphons and prevents smoke from accumulating over a dining table. Two types of exhaust hoods are available: movable and fixed.

CHARCOAL IGNITER

CHARCOAL IGNITER

This charcoal igniter is compact but shows high performance.
The fire-retardant specialized material enables high durability and advanced heat insulation.

CLEAN AIR PURIFICATION SYSTEM

CLEAN AIR PURIFICATION SYSTEM

This static air-purification system is developed specially designed for restaurants.
It removes heavy oily smoke and smell extremely through the dust collector.
In addition it has ceramic filter and this system reduces smell effectively.
